First installation of Newbinder Folder Gluer Machine in Bangladesh
Home>>Blog>>News>>First installation of Newbinder Folder Gluer Machine in Bangladesh

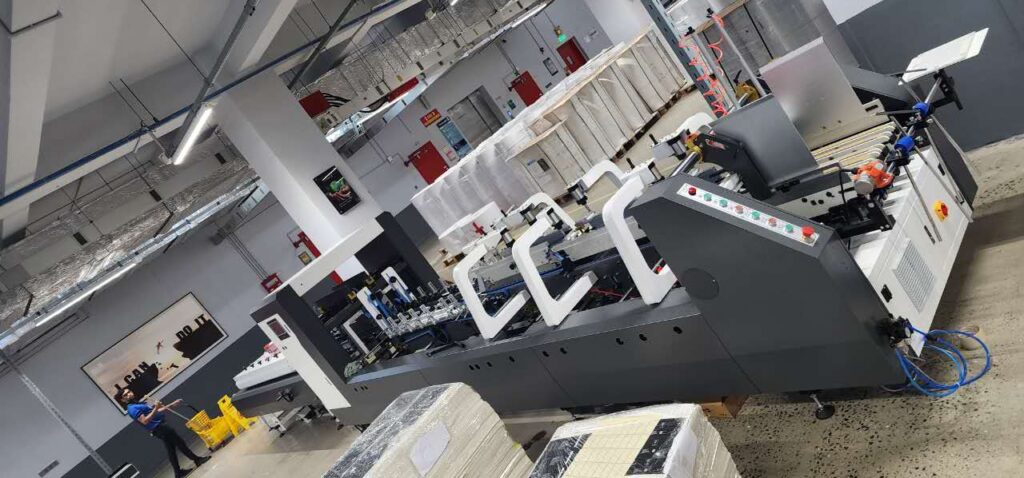

With less than two hours of remote technical support, customer has installed the Folder Gluer Machine successfully and run the jobs smoothly.

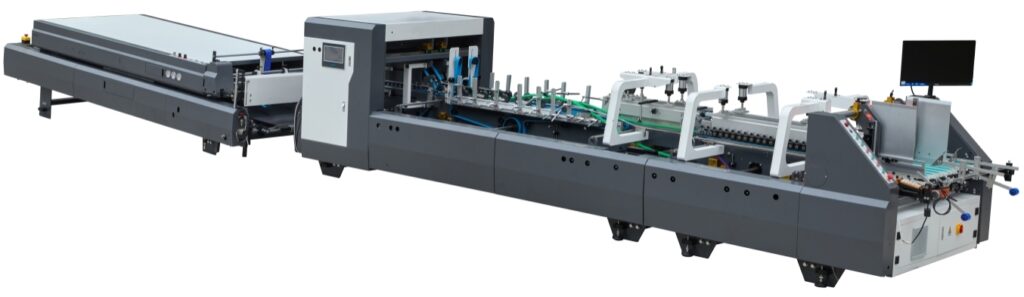

The 800 folder gluer machine with pre-fold function,each set is controlled by independent servo motor, adopts electrical regulating board,imported electronic components,two plates track mode device. Aluminum plates are all chute structure, which is easy to add spare parts.The machine is especially designed for all kinds cardboard packaging boxes,which can meet to all kinds of requirements of automatic packaging area.
| Paper Material | Cardboard 200-800GSM E/F corrugated |
| Max. Liner speed | Max. 300 meter/minute |
| Feeding way | Automatically and continuously feeding |
| Way of folding | Fold 1 and fold 3 are 180°and 135°, Fold 2 and fold 4 are 180°, |
| Glue Material | Water-base cold glue |
| Electric power | 15KW 380V 50HZ 3P |
| Weight | 4000KG |
| Overall dimensions | 10000 x 1500 x 1400mm |
