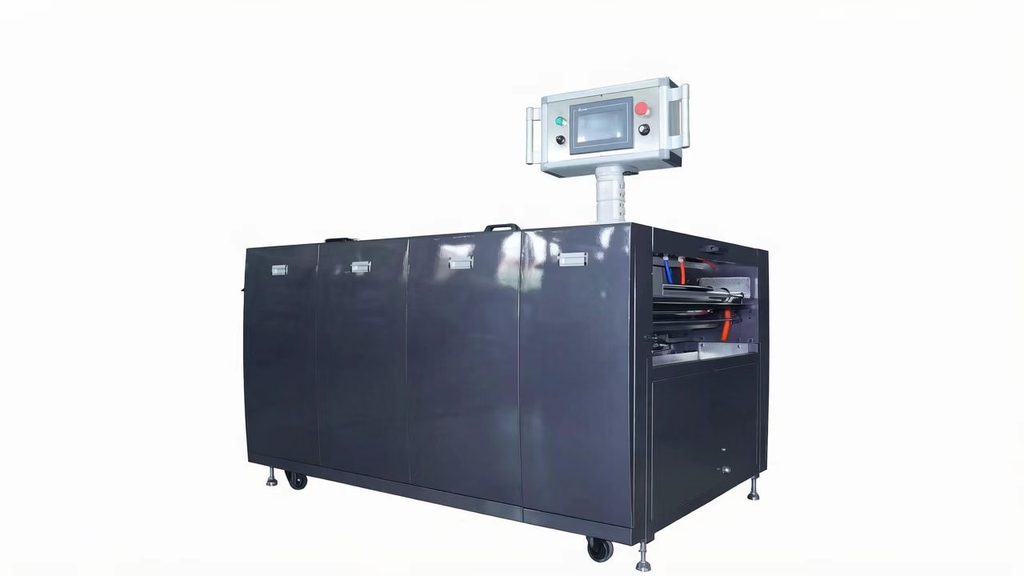

Home>>Products>>UV Coater>>DigiX UV760M Flood UV Coater Machine
Features:
- DigiX UV760M manual feeding flood UV coating machine is good for digital printings, short-run color printings, PVC card, plastic media, paper pre-printing coating for HP Indigo, water-base and solvent inkjet printings etc.
- The coating will make the printings more bright and endurable, and can be waterproof, heatproof and anti-sunshine.
- It is the good option for both offset printing and digital printings.
- It can do UV coating, Water-base coating, primer coating.
- Modular UV lamp house and IR lamp house.
- Suitable for inline and offline applications.
- Manual feeding and can add standalone feeder and stacker later to convert into automatic feeding model and automatic stacking model.
- Automatic coating supply with fluid pump, and recycle with hose.
- Auto stop for over heat, good temperature control, air cooling system.
- E-stop safety and limit switch device.
- One UV lamp, three IR lamp. IR lamp power is adjustable.
- Easy adjustment, low maintenance.
- Low noise, small location, modern design, advanced technology.
Specifications:
| DigiX UV760M Flood UV Coater Machine | |
|---|---|
| Model No. | DigiX UV760M |
| Max. Paper width | 760mm |
| Paper thickness | 170~1000gsm |
| Max. coating speed | 35m/min. |
| Power supply | 380V 50Hz 3phase 13Kw |
| Weight | 580kgs |
| Dimension | 2100x1330x1300mm |
