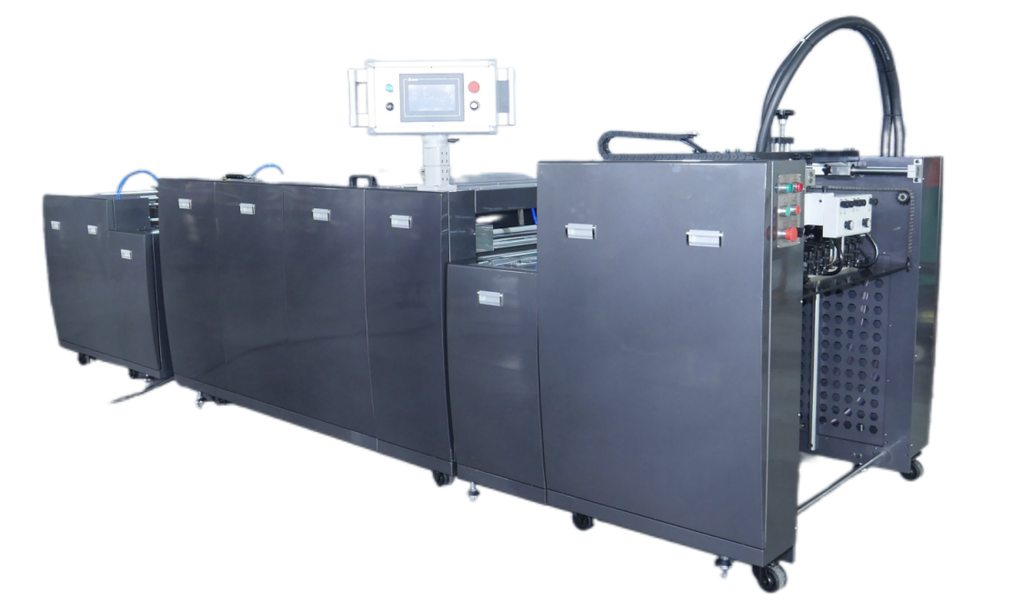

Home>>Products>>UV Coater>>DigiX UV560A Automatic Flat Aqueous & UV Varnish Coating Machine
Features:
- DigiX UV560A Automatic feeding Flat Aqueous & UV Varnish Coating Machine is good for digital printings, short-run color printings, PVC card, plastic media, paper pre-printing coating for HP Indigo, water-base and solvent inkjet printings etc.
- The coating will make the printings more bright and endurable, and can be waterproof, heatproof and anti-sunshine.
- It is the good option for both offset printing and digital printings.
- It can do UV coating, Water-base coating, primer coating.
- Modular feeder, delivery unit and coater, modular UV lamp house and IR lamp house.
- Suitable for inline and offline applications.
- Automatic feeding through streamline feeder head, advanced technology and stable performance, good for thin media and thick media.
- Automatic delivery unit
- Automatic coating supply with fluid pump, and recycle with hose.
- Auto stop for over heat, good temperature control, air cooling system.
- E-stop safety and limit switch device.
- One UV lamp, three IR lamp. IR lamp power is adjustable.
- Easy adjustment, low maintenance.
- Low noise, small location, modern design, advanced technology.
Specifications:
| DigiX UV560A Automatic Flat Aqueous & UV Varnish Coating Machine | |
|---|---|
| Model No. | DigiX UV560A |
| Min. Paper size | 320x280mm |
| Max. paper size | 560x530mm |
| Paper thickness | 157~600gsm |
| Max. coating speed | 35m/min. |
| Power supply | 380V 50Hz 3Phase 15.5Kw |
| Total weight | 1580Kgs |
| Dimension | 4180x1080x1300mm |
