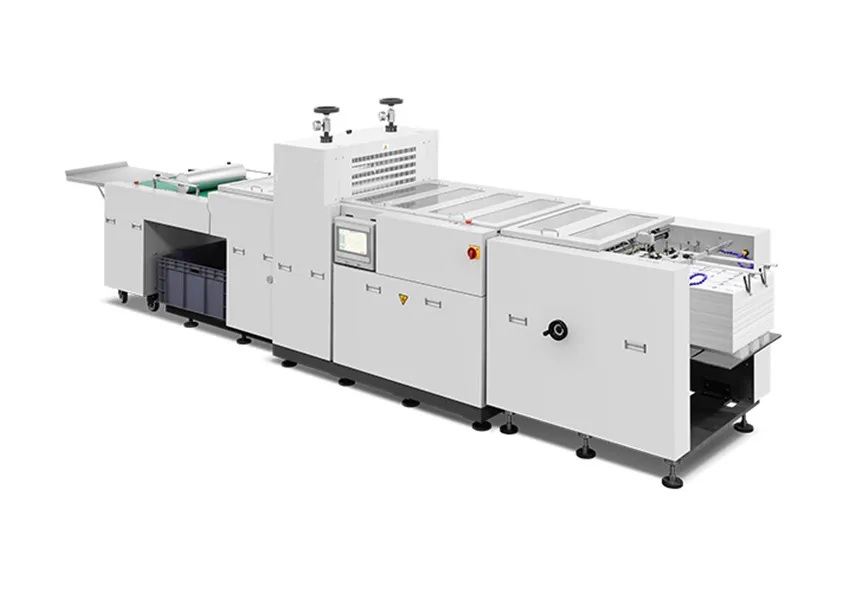

Round to Round Die Cutting Machine
Home>>Products>>Die Cutting Machine>>Round to Round Die Cutting Machine
Features
The R550 round to round die cutting machine exemplifies quality rotary die cutting machine engineering, featuring ±0.1mm ultra-precise feeding accuracy and quick-change flexible magnetic dies for seamless production transitions. This system is equipped with intelligent functions including automatic sheet feeding, double-sheet detection, mark alignment, and waste removal – all designed to maximize productivity while minimizing material waste.
Designed for user convenience, the machine incorporates a flat-type paper feeder and aligning table for smooth operation, with automatic deviation correction ensuring consistent results. Its adaptable design accommodates various materials and patterns, making it ideal for labels, hang-tag, folding cartons and specialty product manufacturing. For businesses seeking a quality rotary die cutting machine that combines precision, automation, and customization flexibility, this R550 Round to Round Die Cutting Machine offers the perfect solution for efficient, high-accuracy die-cutting operations.
- The R550 Round to Round Die Cutting Machine is a suitable equipment for different products finishing. It is suitable for small batch and repeated jobs. It use flexible magnetic dies and easy to replace.
- Through the flat-type paper feeder and aligning table, the paper enters the die-cutting section, and the positioning accuracy of the paper-feeding direction can reach ±0.1mm.
- Automatic paper lifting, automatic paper feeding, double sheet detection, registration mark alignment die cutting, automatic deviation correction, automatic waste discharge and other functions.
- The separator section can be directed to blow away waste, and adjustment does not require tools.
- The separator section and collection section can be pushed away as a whole cassette, providing maximum convenience for changing the dies.
- The wheel of separator section is Electrical control,Timing up and down,the final product will be output to the receiving table regularly.
Specifications
| Model No.: | R550 Round to Round Die Cutting Machine |
| Max. sheet size | 550x750mm |
| Min. sheet size | 240x280mm |
| Sheet thickness(for die cutting) | 0.15-0.5mm |
| Sheet thickness(for creasing) | Max. 0.4mm |
| Max. finish size | 526x730mm |
| Min. finish size | 50x80mm |
| Min. discharge width | 6mm |
| Max. die thickness | 1mm |
| Max. die size | 550x760mm |
| Min. die size | 160x110mm |
| X/Y direction die cutting accuracy | ±0.1mm |
| Feeder/stacker loading height | 500mm |
| Max. die cutting speed | 6000 sph |
| Power supply | 380V 50Hz three phase |
| Net weight | 2600kgs |
| Dimensions | 5660x1450x1620mm |
