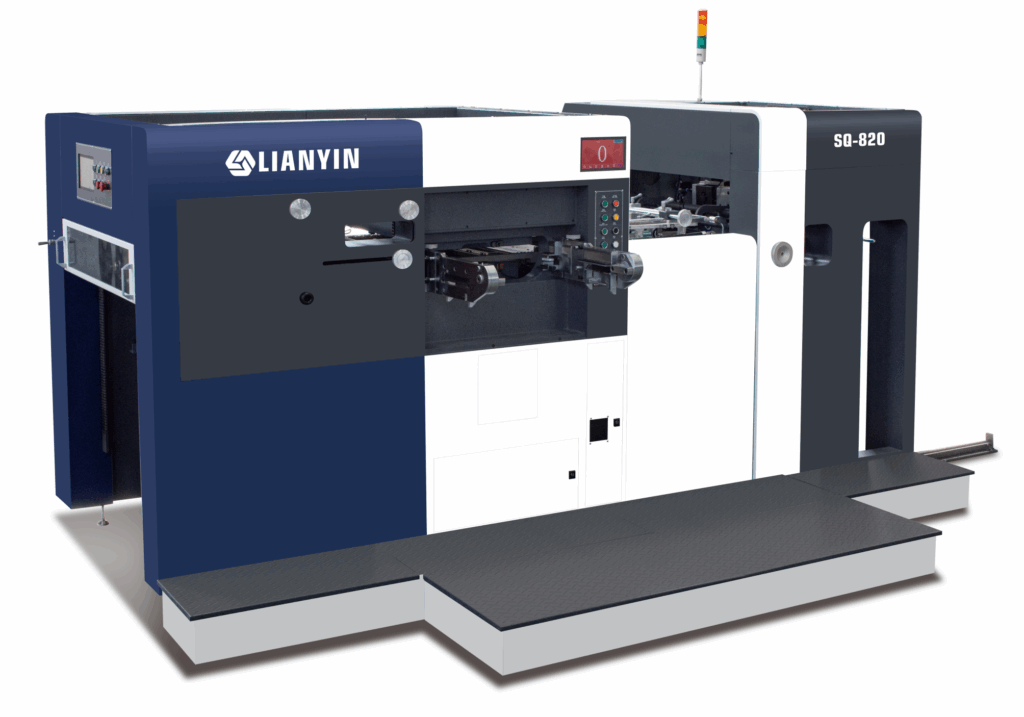

Home>>Products>>Die Cutting Machine>>LexCut SQ820 Automatic Die Cutting Machine
Features:
High performance sheet flow with table stroke over those currently in use (Stable sheet flow than before)
Air clutch and air blow adopted
Four set of toggle mechanisms that resist unbalanced loads
Unique touch screen monitor (time, control, machine information, troubleshooting etc.)
Gripper bar running open mechanism to improve delivery piling
Installation of the non-stop belt(automatically controlled)
Air brake device and releasable brush brake device are fitted on the machine
Specifications:
| Model No.: | LexCut SQ820 |
| Product name: | B2 Automatic Die Cutting Machine |
| Max. paper size: | 830x570mm |
| Min. paper size: | 300x270mm |
| Max. die cutting size: | 810x560mm |
| Die cutting precision | ±0.075mm |
| Paper thickness: | 0.1-1.5mm |
| Max. die cutting speed: | 8000 sph |
| Max die cutting pressure: | 320t |
| Paper delivery height: | 1200mm |
| Motor power: | 380V 50Hz 5.5kw |
| Working power: | 380V 50Hz 8Kw |
| Machine dimension: | 4055x1854x1952mm |
| Machine weight: | 10,000kgs |

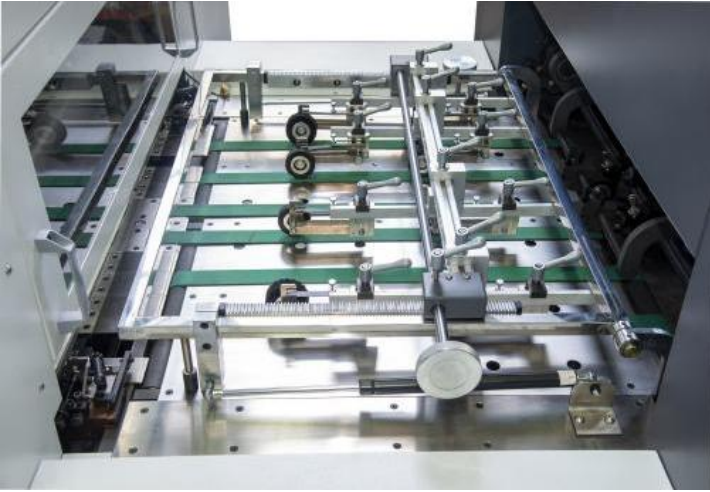

Paper feeder delivery
It can be adjusted as a whole, reducing the machine adjustment time.

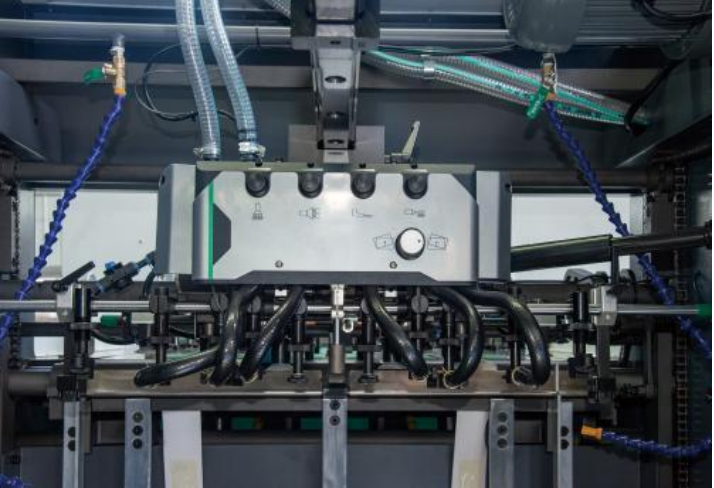

Feeder head
The feeder head can be adjusted without stopping to adjust the angle of various paper,stable. accurate and smooth paper feeding.

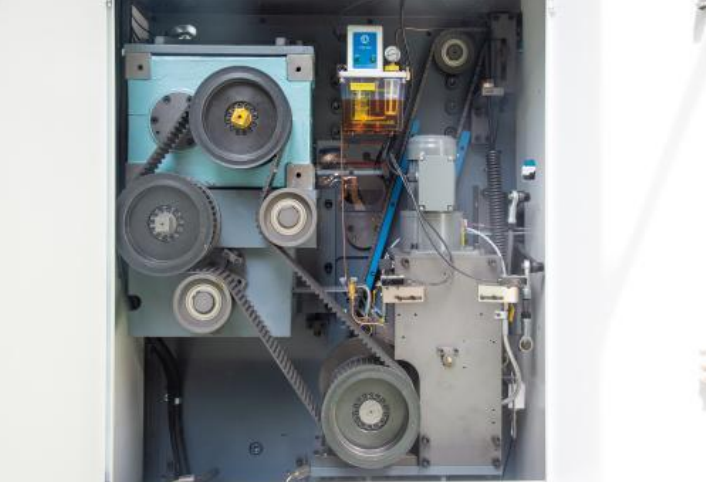

Main drive timing belt
Reliable transmission, large torque, low noise, low tensile rate in long-term operation, easy maintenance and long service life.
