Features:
High performance sheet flow with table stroke over those currently in use (Stable sheet flow than before)
Air clutch and air blow adopted
Four set of toggle mechanisms that resist unbalanced loads
Unique touch screen monitor (time, control, machine information, troubleshooting etc.)
Gripper bar running open mechanism to improve delivery piling
Installation of the non-stop belt(automatically controlled)
Air brake device and releasable brush brake device are fitted on the machine
Specifications:
| Model No.: | LexCut Pro SQ820L |
| Product name: | B2 Automatic Die Cutting & Stripping Machine |
| Max. paper size: | 830x570mm |
| Min. paper size: | 300x270mm |
| Max. die cutting size: | 810x560mm |
| Die cutting precision | ±0.075mm |
| Paper thickness: | 0.1-1.5mm |
| Max. die cutting speed: | 8000 sph |
| Max die cutting pressure: | 320t |
| Paper delivery height: | 1200mm |
| Motor power: | 380V 50Hz 5.5Kw |
| Working power: | 380V 50Hz 8Kw |
| Machine dimension: | 4818x1854x1952mm |
| Machine weight: | 11,000kgs |
Paper feeder delivery
It can be adjusted as a whole, reducing the machine adjustment time.
Feeder head
The feeder head can be adjusted without stopping to adjust the angle of various paper,stable. accurate and smooth paper feeding.
Main drive timing belt
Reliable transmission, large torque, low noise, low tensile rate in long-term operation, easy maintenance and long service life.

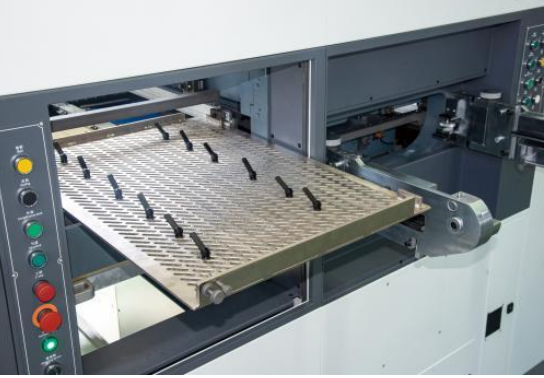

Stripping section
The Stripping needle adopts a quick-release and quick-installation design. There is no need for making a plate, which saves time and improves production efficiency.
Three frame structure, good stability, easy to operate. In addition, the upper and lower frames can be fine-tuned separately, which is more practical and maneuverable.
